Chevrolet Camaro fuse systems: complete diagrams from 1993 onwards

The Chevrolet Camaro, a muscle car icon, has seen its electrical architecture evolve significantly since the turn of the millennium, adapting to more advanced features like enhanced safety systems, infotainment, and performance electronics. From the fourth-generation models wrapping up in the early 2000s to the high-tech sixth-generation vehicles dominating today, fuse boxes safeguard critical circuits against overloads. These setups have grown from basic panels to multi-location modules with integrated relays for better organization and diagnostics. This comprehensive guide details full fuse diagrams, locations, amperage ratings, and component protections for Camaro generations from 2000 forward, based on factory specifications to aid in troubleshooting and maintenance.

Evolution of fuse systems in Chevrolet Camaro

Starting with the late fourth-generation Camaro (2000-2002), fuse systems were straightforward, with a primary instrument panel box and two engine compartment blocks handling essentials like lighting and engine controls. After a production hiatus from 2003-2009, the fifth-generation revival (2010-2015) introduced more sophisticated layouts, including a rear compartment box for added features like convertible tops and audio amps. The sixth generation (2016-present) further refined this with advanced power distribution, supporting tech like heated seats and camera modules, often featuring J-case and mini fuses alongside smart relays. This progression enhances reliability for high-performance driving, though off-road or track use demands regular inspections for corrosion or blown elements.

Fuse diagrams for 1993-2002 models

The fourth-generation Camaro (1993-2002) used a simple yet robust fuse arrangement, with one interior panel and two under-hood boxes. Fuses were primarily blade-type, protecting core functions amid the era’s V6 and V8 powertrains.

Instrument panel fuse box:

• №1 (15A): STOP/HAZARD – Hazard Flashers, Brake Switch Assembly
• №2 (10A): TURN B/U – Traction Control/Second-Gear Start Switch, Back-Up Lamp Switch, Turn Flasher, Daytime Running Lamps (DRL) Module
• №3 (2A): STG WHL CNTRL – Steering Wheel Controls
• №4 (10A): RADIO ACCY – Delco Monsoon Radio Amplifier, Remote CD Player (Trunk)
• №5 (10A): TAIL LPS – Daytime Running Lamps (DRL) Module, Headlamp Switch
• №6 (10A): HVAC – HVAC Selector Switch, Rear Defogger Switch, Timer
• №7 (10A): PWR ACCY – Parking Lamp Relay, Hatch Release Relay, Power Mirror Switch, Radio, Shock Sensor, Instrument Cluster
• №8 (10A): COURTESY – Body Control Module (BCM)
• №9 (10A): GAUGES – Body Control Module (BCM), Brake-Transmission Shift Interlock (BTS1), Instrument Cluster, Daytime Running Lamps (DRL) Module
• №10 (10A): AIR BAG – Air Bag System
• №11 (20A): CIG/ACCY – Cigarette Lighter, Data Link Connector (DLC)
• №12 (20A): DEFOG/SEATS – Rear Defogger Switch/Timer, Power Seats
• №13 (2A): STG WHL CNTRL – Steering Wheel Controls Illumination
• №14 (25A): WIPER/WASH – Wiper Motor Assembly, Wiper/Washer Switch
• №15 (20A): WINDOWS – Power Windows Switch (RH, LH), Express-Down Module, Convertible Top Switch
• №16 (2A): IP DIMMER – Door Illumination Lamp (LH, RH), Headlamp Switch, Fog Lamp Switch, Instrument Cluster, HVAC Control Assembly, PRNDL Illumination Lamp, Ashtray Lamp, Radio, Rear Window Defogger Switch/Timer, Traction Control (ASR)/Second-Gear Start Switch, Convertible Top Switch
• №17 (15A): RADIO – Body Control Module (BCM), Radio, Amplifier, Steering Wheel Controls-Radio

Engine compartment fuse box #1:

• ABS BAT SOL: Anti-Lock Brake System
• TCS BAT: Traction Control System (ASR) and ETC
• COOL FAN: Cooling Fan Control
• PCM BAT: Powertrain Control Module (PCM)
• FUEL PUMP: Fuel Pump
• AIR PUMP: Air Pump Relay and Bleed Valve
• LH HDLP DR: Left Headlamp Door and Module
• RH HDLP DR: Right Headlamp Door and Module
• HORN: Horn Relay
• ABS BAT-1: Anti-Lock Brake System Module
• H/L DR HORN: Horn and Headlamp Doors
• ABS BAT-2: Anti-Lock Brake and Traction Control System (ASR)
• COOL FAN: Cooling Fan Relays

Relays in engine compartment fuse box #1:

• FOG LAMP: Fog Lamps
• HORN: Horn
• FAN #3: Cooling Fans
• FAN #2: Cooling Fans
• FAN #1: Cooling Fans

Engine compartment fuse box #2:

• INJ-2: Fuel Injectors (Not Used for V6) (LH Injectors for V8 and Ignition Module)
• INJ-1: Fuel Injectors (All for V6) (RH Injectors for V8 and Ignition Module)
• ENG SEN: Mass Air Flow, Heated Oxygen Sensor, Skip Shift Solenoid (V8 Only), Reverse Lockout Solenoid, Brake Switch
• STRTR: Powertrain Control Module (PCM) and Clutch Pedal Switch
• ABS IGN: Anti-Lock Brake System Module
• PCM IGN: Powertrain Control Module (PCM)
• ETC: Electronic Throttle Control (V6 Only)
• ENG CTRL: Ignition Module (V6 Only), Automatic Transmission and Charcoal Canister Purge Solenoid
• A/C CRUISE: Air Conditioning Compressor Relay, Cruise Control Switches and Module
• ENG CTRL: Engine Controls, Fuel Pump, Powertrain Control Module (PCM), A.I.R. and Cooling Fans
• I/P-1: HVAC Blower Control and Relay
• IGN: Ignition Switch, Relay and Starter Enable Relay
• I/P-2: Instrument Panel Fuse Center

Relays in engine compartment fuse box #2:

• AIR SOL: Not Used
• AIR PUMP: Air Pump
• A/C COMP: Air Conditioning Compressor
• FUEL PUMP: Fuel Pump
• STARTER: Starter
• IGN: Engine Controls, Cruise Control, Air Conditioning

Fuse diagrams for 2010-2015 models

The fifth-generation Camaro brought back the pony car with modern electronics, featuring three fuse locations: instrument panel, engine compartment, and luggage compartment. Configurations saw minor updates mid-cycle, adding features like intercooler pumps.

Instrument panel fuse box:

• F1: Discrete Logic Ignition Switch
• F2: Diagnostic Link Connector
• F3: Airbag
• F4: Cluster
• F5: Heating Ventilation Air Conditioning Controller
• F6: Body Control Module
• F8: Battery
• F9: Spare
• F10: Spare
• F12: Spare
• F13: Display
• F14: OnStar Universal Hands‐Free Phone (If Equipped)
• F15: Body Control Module 3
• F16: Body Control Module 4
• F17: Power Outlet 1
• F18: Power Outlet 2
• F19: Steering Wheel Controls Backlight
• F20: Spare
• F21: Spare
• F23: Trunk
• F24: Automatic Occupant Sensing
• F25: Body Control Module 1
• F27: Body Control Module 8
• F28: Front Heater, Ventilation, and Air Conditioning
• F29: Body Control Module 5
• F30: Body Control Module 7
• Circuit Breaker CB7: Passenger Seat
• Circuit Breaker CB26: Driver Seat

Relays in instrument panel:

• K10: Retained Accessory Power
• K609: Trunk

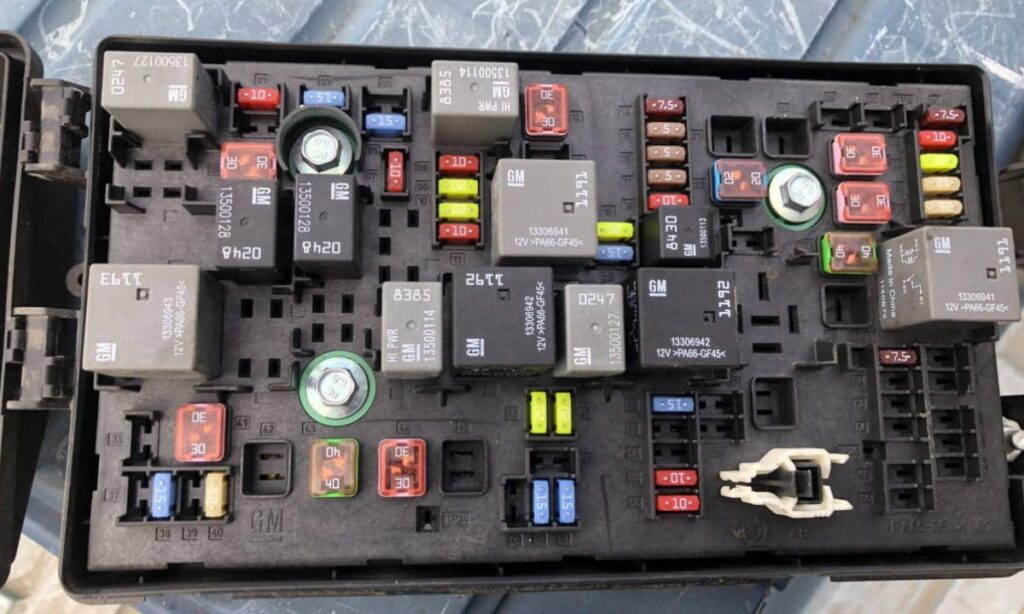

Engine compartment fuse box:

• J-Case Fuse 6: Wiper
• J-Case Fuse 12: Starter
• J-Case Fuse 22: Brake Vacuum Pump
• J-Case Fuse 25: Power Windows Rear
• J-Case Fuse 26: Power Windows Front
• J-Case Fuse 27: Rear Defog
• J-Case Fuse 41: Cooling Fan High
• J-Case Fuse 42: Front Heater, Ventilation and Air Conditioning (2010 only)
• J-Case Fuse 43: Antilock Brake System Pump
• J-Case Fuse 44: Cooling Fan Low
• Mini Fuse 1: Air Conditioning Compressor Clutch
• Mini Fuse 2: Transmission Control Module
• Mini Fuse 3: Intercooler Pump (2013-2015)
• Mini Fuse 5: Engine Control Module Main
• Mini Fuse 7: Pre-Catalytic Converter Oxygen Sensor
• Mini Fuse 8: Post-Catalytic Converter Oxygen Sensor
• Mini Fuse 9: Fuel Injectors – Even
• Mini Fuse 10: Fuel Injectors – Odd
• Mini Fuse 11: Cooling Fan Relay
• Mini Fuse 14: Manifold Air Flow/Chassis Control
• Mini Fuse 15: Ignition
• Mini Fuse 16: Run/Crank IP
• Mini Fuse 17: Sensing Diagnostic Module/Ignition
• Mini Fuse 18: Run/Crank Body
• Mini Fuse 19: Transmission Control Module/Ignition
• Mini Fuse 20: Engine Control Module/Ignition
• Mini Fuse 31: Outside Rear View Mirror
• Mini Fuse 32: Canister Vent Solenoid
• Mini Fuse 33: Body Control Module #6
• Mini Fuse 34: Sunroof
• Mini Fuse 35: Front Heated Seats
• Mini Fuse 38: Washer Pump Front
• Mini Fuse 40: Antilock Brake System Valves
• Mini Fuse 46: HID Headlamp – Left Front
• Mini Fuse 47: HID Headlamp – Right Front
• Mini Fuse 50: Fog Lamps
• Mini Fuse 51: Horn
• Mini Fuse 52: Spare
• Mini Fuse 55: High Beam Headlamp – Right Front
• Mini Fuse 56: High Beam Headlamp – Left Front
• Mini Fuse 61: Heated Mirror

Relays in engine compartment:

• K26: Powertrain
• K50: Run / Crank
• K55: Rear Defog
• K612: Cooling Fan High
• K614: Cooling Fan Control
• K61: Starter
• K69: Wiper Control
• K613: Cooling Fan Low
• K617: Air Conditioning Compressor Clutch
• K619: Wiper Speed
• K627: High Intensity Discharge Headlamps
• K632: Brake Vacuum Pump
• K641: Intercooler Pump (2013-2015)

Luggage compartment fuse box:

• F1: Universal Garage Door Opener/Ultrasonic Rear Parking Assist/Inside Rearview Mirror
• F2: Amplifier
• F3: Radio
• F4: Convertible Top 1
• F5: Convertible Top 2
• F6: Spare 1
• F7: Real Time Damping
• F8: Active Exhaust Flapper
• F9: Spare 4
• F10: Engine Control Module/Battery
• F11: Regulated Voltage Control
• F12: Fuel System Control Module

Relays in luggage compartment:

• R1: Spare
• R2: Active Exhaust Flapper

Fuse diagrams for 2016-present models

The sixth-generation Camaro emphasizes performance tech, with fuse boxes in the engine and luggage compartments. Minor revisions occurred around 2019, adding features like fuel priming.

Engine compartment fuse box (2016-2018):

• F1: Antilock brake system pump
• F2: Not used
• F3: Driver power seat
• F4: Cooling fan
• F5: Passenger power seat
• F6: Not used
• F7: Not used
• F8: Not used
• F9: Not used
• F10: Not used
• F11: Not used
• F12: Front wiper
• F13: Starter
• F14: Brake vacuum pump
• F15: Not used
• F16: Heated seat
• F17: Passenger window
• F18: Body control module 4
• F19: Airbag module/AOS
• F20: OnStar/Navigation (if equipped)
• F21: Body control module 6
• F22: Antilock brake system valve
• F23: Not used
• F24: Not used
• F25: Steering column lock
• F26: Body control module 2
• F27: Not used
• F28: Body control module 3
• F29: Body control module 8
• F30: Windshield wiper
• F31: Right HID headlamp
• F32: Left HID headlamp
• F33: Not used
• F34: Horn
• F35: Not used
• F36: Left hi-beam headlamp
• F37: Right high-beam headlamp
• F38: Manual headlamp leveling
• F39: Not used
• F40: Rear electrical center ignition
• F41: Malfunction indicator lamp ignition
• F42: Instrument panel body ignition
• F43: Exhaust valve/Active fuel management
• F44: AOS display ignition
• F45: Sunroof
• F46: Body control module 7
• F47: CGM
• F48: Not used
• F49: Heated steering wheel
• F50: Fuel system control module ignition
• F51: Exhaust valve ptsq
• F52: Air conditioning compressor clutch
• F53: Not used
• F54: Coolant pump
• F55: Not used
• F56: Not used
• F57: Engine control module ignition
• F58: Transmission control module ignition
• F59: Not used
• F60: Transmission control module battery
• F61: MAF/O2 sensor
• F62: Odd coils
• F63: Non-walk O2
• F64: Even coils
• F65: Not used
• F66: Engine control module 1
• F67: Engine control module 2
• F68: Not used
• F69: Not used
• F70: Not used
• F71: Not used
• F72: Not used
• F73: Not used
• F74: Not used
• F75: Not used
• F76: Not used
• F77: Not used

Relays in engine compartment (2016-2018):

• K1: Not used
• K2: Run/Crank
• K3: Not used
• K4: Vacuum pump
• K5: Not used
• K6: Coolant pump
• K7: Engine control module
• K8: Air conditioning control
• K9: Not used
• K10: Starter

Luggage compartment fuse box (2016-2018):

• F1: Rear defogger
• F2: Front heater, ventilation/and air conditioning
• F3: Electric parking brake
• F4: Not used
• F5: Not used
• F6: Rear drive control module
• F7: Right window
• F8: Not used
• F9: Left window
• F10: Heated mirror
• F11: Not used
• F12: Heated steering wheel
• F13: Not used
• F14: HVAC control
• F15: Not used
• F16: Display
• F17: Camera
• F18: Not used
• F19: Front ventilated seat
• F20: Reverse lamps
• F21: Not used
• F22: Not used
• F23: Body control module 1
• F24: Not used
• F25: Not used
• F26: Not used
• F27: RGB lights
• F28: Passive entry/ Passive start battery 1
• F29: Data link connector
• F30: Canister vent
• F31: Memory seat module folding top
• F32: Memory seat module
• F33: Wireless charger
• F34: Engine control module battery
• F35: Fuel pump/Fuel system control module
• F36: Not used
• F37: Electric steering column lock
• F38: Mirror window module
• F39: Rear closure
• F40: Not used
• F41: Battery regulated voltage control
• F42: SADS
• F43: Not used
• F44: Folding top solenoid
• F45: Amplifier
• F46: FPPM 22
• F47: Shunt
• F48: Not used
• F49: Steering wheel
• F50: Inside rearview mirror
• F51: Camera module
• F52: Rear parking assist
• F53: Electronic limited-slip differential
• F54: Side blind zone alert
• F55: Radio controls
• F56: Theft/Universal remote system
• F57: OnStar/Navigation (export)

Relays in luggage compartment (2016-2018):

• K1: Rear defogger
• K2: Fuel pump

Circuit breakers in luggage compartment (2016-2018):

• CB1: Not used
• CB2: Retained accessory power accessory
• CB3: Not used

Engine compartment fuse box (2019-present):

• F1: ABS pump
• F2: Not used
• F3: Driver power seat
• F4: Cooling fan
• F5: Passenger power seat
• F6: Not used
• F7: Not used
• F8: Not used
• F9: Not used
• F10: Not used
• F11: AUX DRL
• F12: Front wiper
• F13: Starter
• F14: Brake vacuum pump
• F15: Automatic headlamp leveling module
• F16: Front heated seat
• F17: Passenger window
• F18: Body control module 4
• F19: SDM/AOS
• F20: OnStar / Navigation
• F21: Body control module 6
• F22: ABS valve
• F23: Not used
• F24: Not used
• F25: Electric steering column lock
• F26: Body control module 2
• F27: Not used
• F28: Body control module 3
• F29: Body control module 8
• F30: Windshield wiper
• F31: Right LED headlamp
• F32: Left LED headlamp
• F33: Not used
• F34: Horn
• F35: Automatic headlamp leveling motor
• F36: Left high-beam headlamp
• F37: Right high-beam headlamp
• F38: Not used
• F39: Not used
• F40: Rear electrical center/lgnition
• F41: Malfunction indicator lamp/ Ignition
• F42: HVAC/ISRVM/ OSRVM
• F43: Front exhaust valve active fuel management
• F44: Not used
• F45: Sunroof
• F46: Body control module 7
• F47: CGM
• F48: A/C clutch
• F49: Heated steering wheel
• F50: Fuel system control module/ Ignition
• F51: Rear exhaust valve PTSQ
• F52: Not used
• F53: Not used
• F54: Engine coolant pump
• F55: Fuel prime
• F56: Not used
• F57: Engine control module/lgnition
• F58: Transmission control module/ Ignition
• F59: Not used
• F60: Transmission control module battery
• F61: Non-walk/ Vehicle
• F62: Ignition coils – odd
• F63: Non-walk/O2 sensor
• F64: Ignition coils – even
• F65: Not used
• F66: Engine control module 1
• F67: Engine control module 2
• F68-F77: Spare fuses

Relays in engine compartment (2019-present):

• K1: Not used
• K2: Run/Crank
• K3: Not used
• K4: Vacuum pump
• K5: A/C control
• K6: Coolant pump
• K7: Engine control module
• K8: Fuel prime
• K9: Not used
• K10: Starter

Luggage compartment fuse box (2019-present):

• F1: Rear window defogger
• F2: Front blower
• F3: Electric parking brake
• F4: Not used
• F5: Not used
• F6: Rear drive control module
• F7: Right window
• F8: Not used
• F9: Left window
• F10: Heated mirror
• F11: Not used
• F12: Heated steering wheel
• F13: Not used
• F14: HVAC control
• F15: Spare
• F16: Display
• F17: Spare
• F18: Not used
• F19: Front ventilated seat
• F20: Spare
• F21: Not used
• F22: Not used
• F23: Body control module
• F24: Not used
• F25: Not used
• F26: Not used
• F27: RGB lights
• F28: Passive entry/ Passive start battery
• F29: Data link connector
• F30: Canister vent
• F31: Power fold top
• F32: Memory seat module
• F33: Wireless charger
• F34: Engine control module battery
• F35: Fuel system control module V6
• F36: Not used
• F37: Electric steering column lock
• F38: Outside rear view mirror/ Power window
• F39: Rear closure
• F40: Not used
• F41: Battery regulated voltage control
• F42: SADS
• F43: Rear drive control module/ICCM
• F44: Folding top solenoid
• F45: Amplifier
• F46: Fuel system control module V8
• F47: Shunt
• F48: Not used
• F49: Steering wheel
• F50: Front camera module
• F51: Camera module
• F52: Park assist
• F53: Not used
• F54: Side blind zone alert
• F55: Radio
• F56: Not used
• F57: Not used

Relays in luggage compartment (2019-present):

• K1: Rear window defogger
• K2: Fuel system control module

Circuit breakers in luggage compartment (2019-present):

• CB1: Not used
• CB2: Retained accessory power
• CB3: Not used

Chevrolet Camaro fuse configurations from 2000 to the present reflect the model’s shift from raw power to integrated technology, providing robust protection that supports both daily drives and high-speed pursuits.
