Chevrolet Captiva fuse box diagrams: Complete detailed schemes for all generations

BySerge Barrett

The Chevrolet Captiva (also known as Opel Antara / Vauxhall Antara / Holden Captiva) is a popular mid-size crossover SUV produced from 2006 to 2018. It was offered in two main generations: the first-generation C100 (2006–2010/2011) and the facelifted C140 / Captiva Sport (2011–2018). A blown fuse can cause problems with lights, windows, fuel pump, ABS, or other systems.

Below you will find the most complete fuse box diagrams for both generations, including exact locations, fuse numbers, amperage, and protected circuits. Diagrams are based on official service data and common layouts (slight variations may exist by market, engine — 2.4L, 3.0L, 3.2L, or diesel — and options like AWD or sunroof). Always verify with the diagram on the fuse box cover or your owner’s manual for your specific VIN.

1st Generation Chevrolet Captiva (C100) – 2006–2010/2011

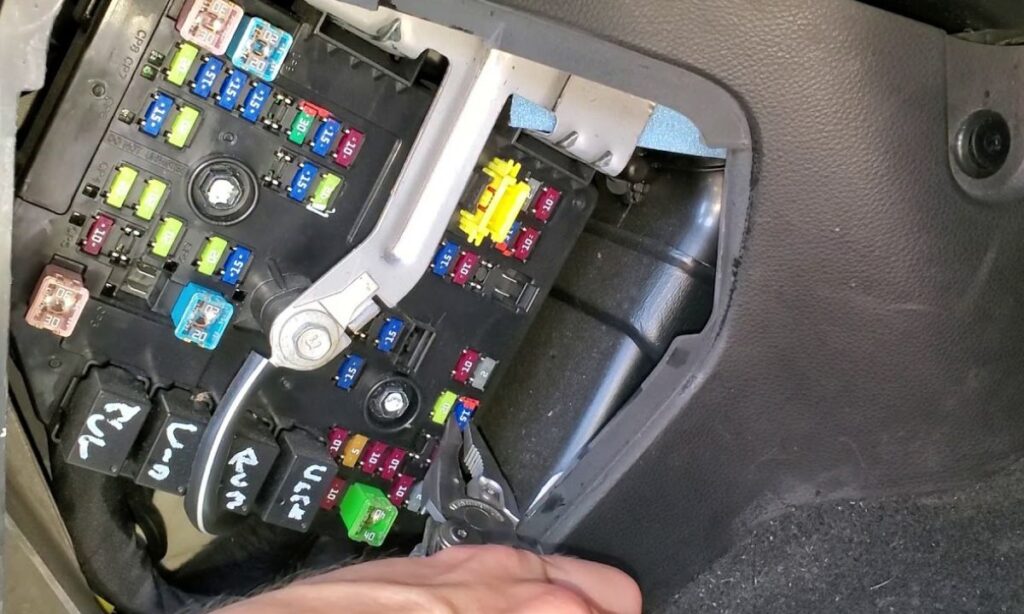

Instrument Panel Fuse Box Location:
On the left side at the feet of the passenger (or driver’s side in some markets), behind a protective cover.

Complete Instrument Panel Fuse List:

  • F1 — 20A — Additional power outlet (APO 1)
  • F2 — 20A — Heated front seats
  • F3 — 15A — Audio system / Radio
  • F4 — 10A — Air conditioning
  • F5 — 10A — Body Control Module (BCM)
  • F6 — 20A — Door lock
  • F7 — 10A — Right turn signals
  • F8 — 10A — Left turn signals
  • F9 — 15A — Stop lamps
  • F10 — 10A — Headlight washers
  • F11 — 10A — Air conditioning
  • F12 — 10A — Body Control Module
  • F13 — 10A — Body Control Module
  • F14 — 10A — Ignition (S/W)
  • F15 — 10A — Rear fog lamp
  • F16 — 10A — Airbag (SRS)
  • F17 — 10A — Front washer
  • F18 — 20A — Front door lock
  • F19 — 20A — Additional power outlet
  • F20 — 10A — Transmission Control Module (TCM)
  • F21 — 10A — Engine control
  • F22 — 10A — Low beam headlights
  • F23 — 20A — Power windows
  • F24 — 10A — Heated exterior mirrors
  • F25 — 10A — Instrument cluster / Dashboard
  • F26 — 10A — Ignition 1
  • F27 — 10A — Airbag
  • F28 — 10A — Folding mirrors (if equipped)
  • F29 — 15A or 20A — Cigarette lighter / Front accessory socket (most common cigarette lighter fuse)
  • F30 — 20A — Passenger power window
  • F31 — 20A — Driver power window
  • F32 — 10A — Clock / Interior lamps

Engine Compartment Fuse Box Location:
In the engine compartment, next to the washer fluid reservoir, covered by a plastic lid.

Complete Engine Compartment Fuse List:

  • F1 — Engine management / ECM
  • F2 — Engine management
  • F3 — Electronic control unit (ECM)
  • F4 — Main cooling fan
  • F5 — Fuel pump
  • F6 — All-wheel drive (AWD) system (if equipped)
  • F7 — Auxiliary relay
  • F8 — Stop lamps
  • F9 — Air conditioner / Ignition 1
  • F10 — Sunroof (if equipped)
  • F11 — Anti-theft system
  • F12 — Rear window defogger
  • F13 — Left low beam headlamp
  • F14 — Right low beam headlamp
  • F15 — Engine 3
  • F16 — Left parking lights
  • F17 — Headlight washer
  • F18 — Transmission Control Module (TCM)
  • F19 — Right parking lights
  • F20–F23 — Spare
  • F24 — Air conditioner components
  • F25 — Horn
  • F26 — Front fog lamps
  • F27 — Main fuse
  • F28 — Starter
  • F29 — Section (various)
  • F30 — Section (various)
  • F31 — Windshield wiper
  • F32 — Launch / Starter
  • F33 — Electric seats
  • F34 — Battery main
  • F35 — High beam headlights
  • F36 — Rear wiper / Rear cleaner

Main Relays in Engine Compartment:

  • R1 — Auxiliary fan
  • R2 — Fuel pump
  • R3 — Wiper speed
  • R4 — Rear defogger
  • R5 — Upper/lower beam
  • R6 — Headlight washer
  • R7 — Main relay
  • R8 — Main fan
  • R9–R17 — Various fan, horn, fog, starter, A/C, etc.

Diesel models may have an additional auxiliary fuse box in the engine compartment with glow plug and PTC heater fuses (60A, 40A, 30A etc.).

2nd Generation Chevrolet Captiva / Captiva Sport (C140) – 2011–2018

Instrument Panel Fuse Box Location:
Under the instrument panel on the passenger’s side, behind the cover on the central console or glovebox area.

Complete Instrument Panel Fuse List (2012–2016 example):

  • AMP — Amplifier
  • APO JACK (CONSOLE) — Auxiliary power outlet (center console)
  • APO JACK (REAR CARGO) — Auxiliary power outlet (rear cargo)
  • AWD/VENT — All-wheel drive / Ventilation
  • BCM (various) — Body Control Module (courtesy, dimmer, interior light, parking, turn signal, stop, battery voltage, etc.)
  • CIGAR — Cigarette lighter
  • CLSTR / IPC — Instrument cluster
  • DRL — Daytime running lamps
  • DR/LCK — Driver door lock
  • DRVR PWR SEAT — Driver power seat
  • DRV/PWR WNDW — Driver power window
  • F/DOOR LOCK — Fuel door lock
  • FRT WSR — Front washer
  • FSCM — Fuel system control module
  • HEATING MAT SW / HTD SEAT PWR — Heated seats
  • HVAC BLWR — HVAC blower motor
  • L/GATE — Liftgate
  • PASS PWR WNDW — Passenger power window
  • RADIO — Radio / Infotainment
  • RR FOG / REAR DEFOG — Rear defogger
  • RUN/CRNK — Run/Crank
  • SDM — Sensing and Diagnostic Module (airbag)
  • S/ROOF — Sunroof
  • SSPS — Speed sensitive power steering
  • TRLR — Trailer

Engine Compartment Fuse Box Location:
In the engine compartment (driver’s or passenger’s side depending on market).

Complete Engine Compartment Fuse List:

  • ABS — Antilock Brake System (valve & pump)
  • A/C — Air conditioning / Climate control
  • BATT1 / BATT2 / BATT3 — Main feeds to instrument panel fuse block
  • BCM — Body Control Module
  • ECM — Engine Control Module
  • ECM PWR TRN — Engine / Powertrain
  • ENG SNSR — Engine sensors
  • EPB — Electric parking brake
  • FAN1 / FAN3 — Cooling fans
  • FRT FOG — Front fog lamps
  • FRT WPR — Front wiper motor
  • FUEL/VAC — Fuel pump / Vacuum pump
  • HDLP WASHER — Headlamp washer
  • HI BEAM LH / RH — High beam headlamps
  • HORN — Horn
  • HTD WASH/MIR — Heated washer fluid / Heated mirrors
  • IGN COIL A / B — Ignition coils
  • LO BEAM LH / RH — Low beam headlamps
  • PRK LP LH / RH — Parking lamps
  • PWM FAN — Pulse width modulation fan
  • REAR DEFOG — Rear window defogger
  • REAR WPR — Rear wiper
  • STOP LAMP — Stop lamps
  • STRTR — Starter
  • TCM — Transmission Control Module
  • TRLR PRK LP — Trailer parking lamps

Relays in Engine Compartment:

  • FAN1 / FAN2 / FAN3 RLY — Cooling fans
  • FRT FOG RLY — Front fog lamps
  • FUEL/VAC PUMP RLY — Fuel pump
  • HDLP WSHR RLY — Headlamp washer
  • HI BEAM / LO BEAM RLY — Headlamps
  • PWR/TRN RLY — Powertrain
  • REAR DEFOG RLY — Rear defogger
  • STRTR RLY — Starter
  • WPR CNTRL / SPD RLY — Wiper control and speed

Diesel models have an additional under-hood fuse box with glow plug controller (60A), fuel filter heater (30A), and PTC heaters (40A each).

General Tips for Chevrolet Captiva Fuse Troubleshooting

  • Always replace a fuse with the exact amperage rating.
  • If a fuse blows repeatedly, there is usually a short circuit — check the wiring and component.
  • Cigarette lighter / accessory sockets are among the most common fuses to blow.
  • For electronic parking brake or brake service, some models require a scan tool.
  • Corrosion in fuse boxes is common in older Captivas — clean contacts regularly.
  • Diesel versions have extra high-amperage fuses for glow plugs and heaters.

These complete diagrams cover the vast majority of electrical issues on the Chevrolet Captiva from 2006 to 2018. Keep a copy in your glovebox for quick reference. If your specific year or trim differs slightly, the diagram sticker inside the fuse box cover is the most accurate source.
