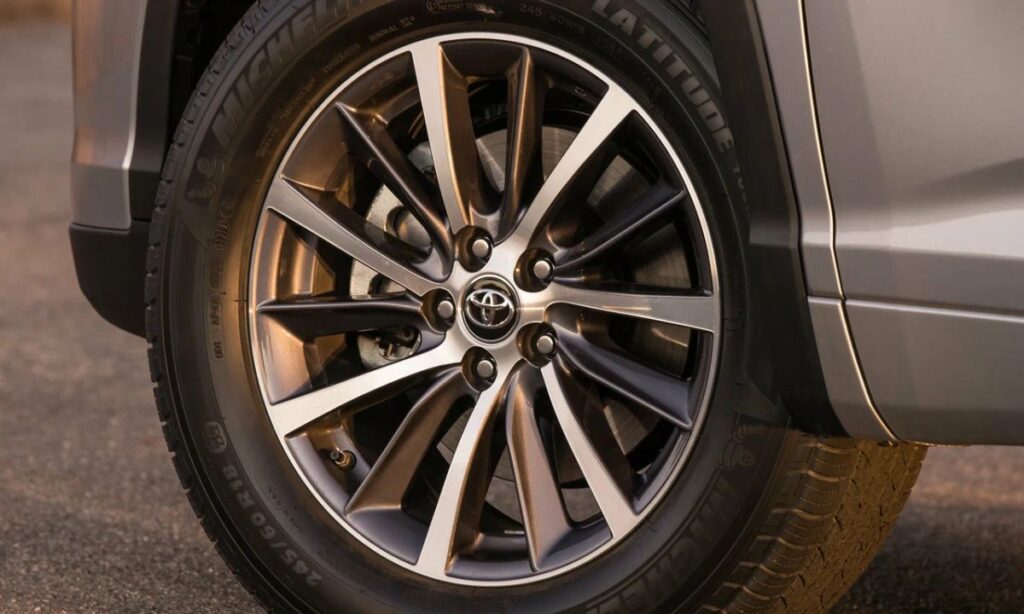

Toyota Highlander Tire and Wheel Sizes: All Generations

BySerge Barrett

The Toyota Highlander has been one of the most popular three-row midsize SUVs since its debut in 2001, and understanding the correct tire and wheel specifications across all generations is essential for safe driving, optimal performance, and proper fitment. Whether you are replacing worn tires, upgrading to larger wheels, or simply verifying OEM specifications, this comprehensive guide covers every generation, trim level, and year of the Toyota Highlander with complete tire and wheel size data.

First Generation Toyota Highlander Tire and Wheel Sizes (2001–2007, XU20)

The first generation Highlander, known internally as the XU20, was built on the Toyota Camry platform and offered in both front-wheel drive and four-wheel drive configurations. Tire and wheel sizes varied depending on trim level.

  • Base and SR5 (2001–2003): 225/70R16 tires on 16-inch steel or alloy wheels, bolt pattern 5×114.3, center bore 60.1 mm, offset +35 mm
  • Limited (2001–2003): 225/65R17 tires on 17-inch alloy wheels, bolt pattern 5×114.3, center bore 60.1 mm, offset +35 mm
  • Base and SR5 (2004–2007): 225/70R16 tires on 16-inch alloy wheels, bolt pattern 5×114.3, center bore 60.1 mm, offset +35 mm
  • Limited (2004–2007): 225/65R17 tires on 17-inch alloy wheels, bolt pattern 5×114.3, center bore 60.1 mm, offset +35 mm
  • Hybrid (2006–2007): 225/65R17 tires on 17-inch alloy wheels, bolt pattern 5×114.3, center bore 60.1 mm, offset +35 mm
  • Recommended tire pressure: 30–32 PSI front and rear for 16-inch fitments; 32–35 PSI for 17-inch fitments (always verify door jamb sticker)
  • Spare tire: full-size compact spare, typically T165/90D17 or matching size depending on model year

Second Generation Toyota Highlander Tire and Wheel Sizes (2008–2013, XU40)

The second generation Highlander, XU40, grew significantly in size and offered a wider range of trim levels including a standard hybrid variant. Wheel and tire options expanded accordingly.

  • Base (2008–2010): 245/65R17 tires on 17-inch steel wheels, bolt pattern 5×114.3, center bore 60.1 mm, offset +35 mm
  • SE and Limited (2008–2010): 245/55R19 tires on 19-inch alloy wheels, bolt pattern 5×114.3, center bore 60.1 mm, offset +35 mm
  • Sport (2008–2010): 245/55R19 tires on 19-inch alloy wheels, bolt pattern 5×114.3, center bore 60.1 mm, offset +35 mm
  • Hybrid (2008–2010): 215/65R17 tires on 17-inch alloy wheels, bolt pattern 5×114.3, center bore 60.1 mm, offset +35 mm
  • All trims (2011–2013): 245/65R17 on base; 245/55R19 on SE, Limited, and Sport; Hybrid retains 215/65R17; bolt pattern remains 5×114.3
  • Recommended tire pressure: 32–35 PSI front and rear (consult door jamb sticker for exact values by trim)
  • Spare: full-size temporary spare T155/90D17 or matching full-size spare on Limited trims

Third Generation Toyota Highlander Tire and Wheel Sizes (2014–2019, XU50)

The XU50 generation refined the Highlander formula with updated styling and more trim-specific wheel and tire configurations. The range of available sizes expanded to include 18-inch options.

  • LE (2014–2019): 245/65R17 tires on 17-inch steel wheels, bolt pattern 5×114.3, center bore 60.1 mm, offset +35 mm
  • LE Plus and XLE (2014–2019): 245/60R18 tires on 18-inch alloy wheels, bolt pattern 5×114.3, center bore 60.1 mm, offset +35 mm
  • Limited and Limited Platinum (2014–2019): 245/55R19 tires on 19-inch alloy wheels, bolt pattern 5×114.3, center bore 60.1 mm, offset +35 mm
  • SE (2014–2019): 245/55R19 tires on 19-inch alloy wheels, bolt pattern 5×114.3, center bore 60.1 mm, offset +35 mm
  • Hybrid LE (2014–2019): 245/65R17 on 17-inch alloy wheels; Hybrid XLE and Limited: 245/55R19 on 19-inch alloy wheels
  • Recommended tire pressure: 33–35 PSI front and rear depending on load and trim (door jamb placard is authoritative)
  • Lug nut torque: 76 ft-lb (103 Nm)

Fourth Generation Toyota Highlander Tire and Wheel Sizes (2020–2025, XU70)

The current XU70 generation Highlander introduced new design language and added the Hybrid Max powertrain in 2022. Wheel and tire specifications were updated with this generation.

  • L (2020–2025): 235/65R18 tires on 18-inch steel wheels, bolt pattern 5×114.3, center bore 60.1 mm, offset +35 mm
  • LE (2020–2025): 235/65R18 tires on 18-inch alloy wheels, bolt pattern 5×114.3, center bore 60.1 mm, offset +35 mm
  • XLE (2020–2025): 235/60R18 tires on 18-inch alloy wheels, bolt pattern 5×114.3, center bore 60.1 mm, offset +35 mm
  • Limited (2020–2025): 235/55R20 tires on 20-inch alloy wheels, bolt pattern 5×114.3, center bore 60.1 mm, offset +35 mm
  • Platinum (2020–2025): 235/55R20 tires on 20-inch alloy wheels, bolt pattern 5×114.3, center bore 60.1 mm, offset +35 mm
  • Hybrid LE and XLE (2020–2025): 235/65R18 or 235/60R18 on 18-inch alloy wheels, same bolt pattern
  • Hybrid Limited and Platinum (2020–2025): 235/55R20 on 20-inch alloy wheels
  • Hybrid Max (2022–2025): 235/55R20 tires on 20-inch alloy wheels, same bolt pattern 5×114.3
  • Recommended tire pressure: 33–36 PSI front and rear (always verify door jamb placard)
  • Lug nut torque: 76 ft-lb (103 Nm)
  • Spare: compact spare T165/90D17 on most trims; some Platinum trims include a full-size matching spare

Universal Wheel Specifications Across All Highlander Generations

  • Bolt pattern: 5×114.3 mm (all generations, all trims)
  • Center bore: 60.1 mm (all generations)
  • Lug nut thread size: M12 x 1.5
  • Lug nut seat type: Conical/tapered 60-degree
  • Typical wheel offset range: +30 mm to +45 mm (OEM is +35 mm; aftermarket wheels should stay within ±10 mm for safe fitment)

Plus-Sizing and Aftermarket Wheel Fitment Notes

  • When upgrading from 17-inch to 18-inch wheels, use 245/60R18 to maintain near-identical overall diameter
  • When upgrading from 18-inch to 19-inch wheels, use 245/55R19 for correct speedometer calibration
  • When upgrading from 19-inch to 20-inch wheels, use 235/55R20 or 245/50R20
  • Always ensure aftermarket wheels have a minimum load rating matching OEM; Highlander requires wheels rated for at least 1,700 lbs per wheel
  • Hub-centric rings are recommended when using aftermarket wheels to ensure proper centering on the 60.1 mm bore
